Bosch 0601077300 Professional GDM 600-15 Digital Multimeter
Bosch Professional 0601077300 GDM 600-15 digital multimeter, True RMS & inverted LCD
Bosch 0601077300 GDM 600-15 digital multimeter is built for troubleshooting and checking electrical systems with True RMS measurement accuracy and a clear inverted LCD display. Designed for trade use, it supports a wide range of checks to help diagnose faults, confirm readings and support maintenance work.
The GDM 600-15 offers measurement functions including voltage, current, resistance, capacitance and frequency, with continuity checking and audible feedback. Min/Max/Average recording helps capture fluctuating signals for more informed decisions on-site.
Key Features
- True RMS measurement: Helps deliver accurate readings on AC signals for dependable testing and diagnostics.
- Inverted LCD display: Designed for clearer reading in a range of working conditions.
- Wide measurement capability: Measures AC/DC voltage and current, resistance, capacitance and frequency for versatile fault-finding.
- Min/Max/Average recording: Records signal fluctuations to help identify intermittent issues and changing loads.
- Continuity test with acoustic feedback: Provides fast go/no-go checking with an audible indication.
- CAT III 600V safety class: Suitable for measurements within CAT III installations up to 600V.

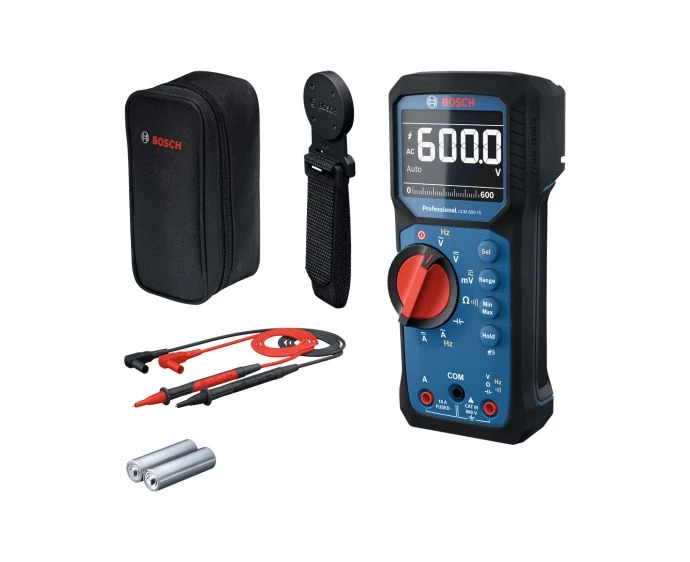

- Compact handling features: Designed for one-handed use and includes a kickstand and magnetic hanging solution for hands-free working.
Specifications at a glance
Suitable applications
- Electrical installation checks, maintenance and repairs
- Fault finding and verification on diverse AC/DC electrical systems
- Continuity checking and resistance measurement for wiring and components
- Capturing fluctuating readings using Min/Max/Average recording

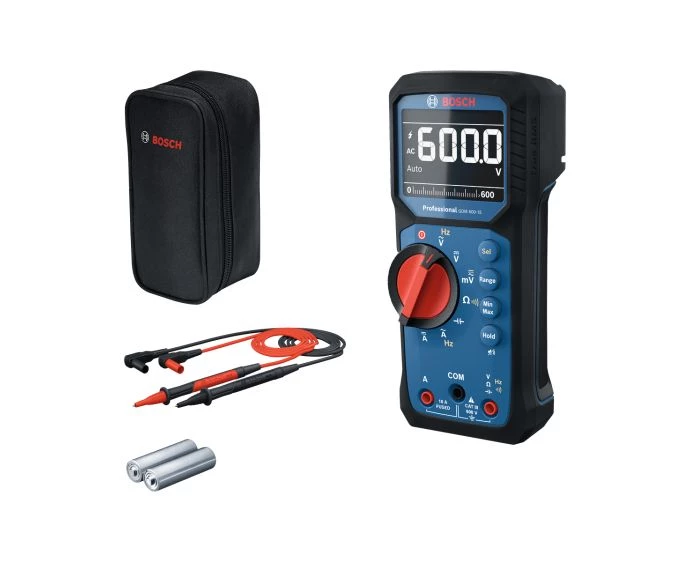

Comes with
- 1 x Digital multimeter
- 2 x 1.5V LR6 (AA) batteries
Technical specification table
| Product type | Digital multimeter |
|---|---|
| Part number | 0601077300 |
| True RMS | Yes |
| Display type | LCD (inverted) |
| AC voltage range | 600 V |
| AC voltage resolution | 0.1 mV |
| AC voltage accuracy | ± 1.0 % + 3 |
| DC voltage range | 600 V |
| DC voltage resolution | 0.1 mV |
| DC voltage accuracy | ± 0.5 % + 2 |
| AC current range | 10 A |
| AC current resolution | 0.001 A |
| AC current accuracy | ± 1.5 % + 3 |
| DC current range | 10 A |
| DC current resolution | 0.001 A |
| DC current accuracy | ± 1.0 % + 3 |
| Resistance range | 40 MΩ |
| Resistance resolution | 0.01 MOhm |
| Resistance accuracy | ± 2.0 % + 5 |
| Continuity | Yes |
| Continuity resolution | 0.1 Ohm |
| Continuity accuracy | ± 1.0 % + 5 |
| Capacitance range | 1000 µF |
| Capacitance accuracy | ± 1.9 % + 2 |
| Frequency resolution | 0.01 Hz |
| Frequency accuracy | ± 0.1 % + 2 |
| Measuring range for frequency | 50 kHz ACV / 2 kHz ACA |
| Acoustic feedback | Yes |
| Safety class | CAT III 600 V |
| IP protection class | IP54 |
| Packaging dimensions | 59 x 177 x 78 mm |
| GTIN | 4053423330106 |
- Efficient multimeter with inverted display and True RMS precision
- Handles tough jobsites with an IP65 rating for durability and impact resistance
- Versatile measurements: frequency, continuity, resistance, and capacitance with Min/Max/Average recording
- Compact design for one-handed use, plus a kickstand and magnetic hanging solution for hands-free operation
