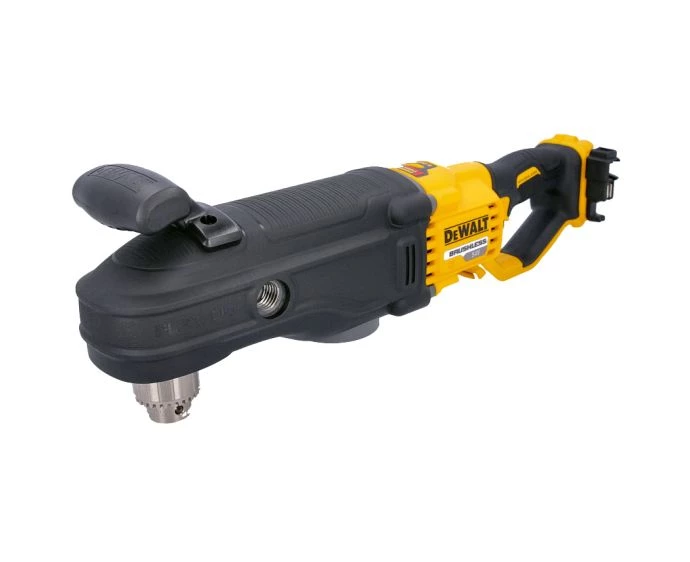

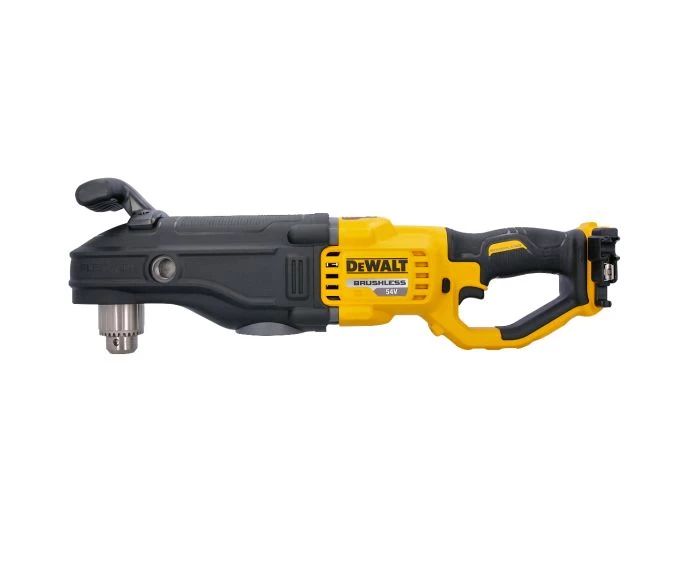

DeWalt DCD470N 54V XR Cordless Brushless FlexVolt Right Angle / Diamond Core Drill Bare Unit

OverviewSpecificationReviewGallery
Comes with
Comes with
1 x Angle Drill
Description

DeWalt DCD470N-XJ 54V XR FlexVolt Right Angle / Diamond Core Drill (13mm keyed chuck)

DeWalt DCD470N-XJ right angle / diamond core drill is designed for high-speed drilling where access is restricted, helping you work efficiently in tight spaces across masonry and timber applications. Powered by the 54V XR FlexVolt platform, it combines a low head profile with a brushless motor for strong performance and reduced maintenance.

The DCD470N-XJ features a two-speed gearbox to match speed and torque to the task, plus an integrated LED in the handle for clearer visibility when working with larger accessories.

Note: Bare unit (battery and charger not included).

Key Features

  • Right-angle, low head profile: Helps improve access and control when drilling in confined spaces.
  • Brushless motor: Designed for efficient power delivery with reduced wear for longer tool life.
  • Two-speed gearbox: Allows you to match speed and torque to the application for more controlled drilling.
  • Perform and Protect™ E-Clutch: Detects reactionary torque from bind-up/stall events and reduces speed to help maintain control.
  • Adjustable bail handle & 2-position side handle: Provides leverage and handling support for demanding drilling tasks.
  • LED light in handle: Improves visibility at the work area, including when using larger accessories.

Specifications at a glance

Voltage54 V
Battery typeLi-ion
Motor typeBrushless
No-load speed0–400 / 0–1320 rpm
Max torque114 / 269 Nm
Chuck13 mm keyed
Drilling capacity (wood)Up to 158 mm
Drilling capacity (metal)Up to 13 mm

Suitable applications

  • Drilling within concrete block and brickwork where a compact right-angle head improves access.
  • Large-diameter drilling in wood up to the stated capacity.
  • Working in tight or awkward spaces where additional leverage and control are needed.

Comes with

  • 1 x Angle drill
Technical specification table
Manufacturer part numberDCD470N-XJ
TypeAngle drill (right angle / diamond core drill)
Power sourceBattery
Voltage54 V
Battery typeLi-ion
MotorBrushless
Speed settings2
No-load speed0–400 / 0–1320 rpm
Maximum torque114 / 269 Nm
Chuck typeKeyed
Chuck size13 mm
Drill capacity (metal)13 mm
Drill capacity (wood)158 mm
Sound pressure level86 dB(A)
Sound power level97 dB(A)
Sound power uncertainty3 dB(A)
Vibration (drilling into metal)3.5 m/s²
Vibration K factor1.5 m/s²
Length535 mm
Width230 mm
Height140 mm
Weight8.11 kg
GTIN / EAN5035048683439
