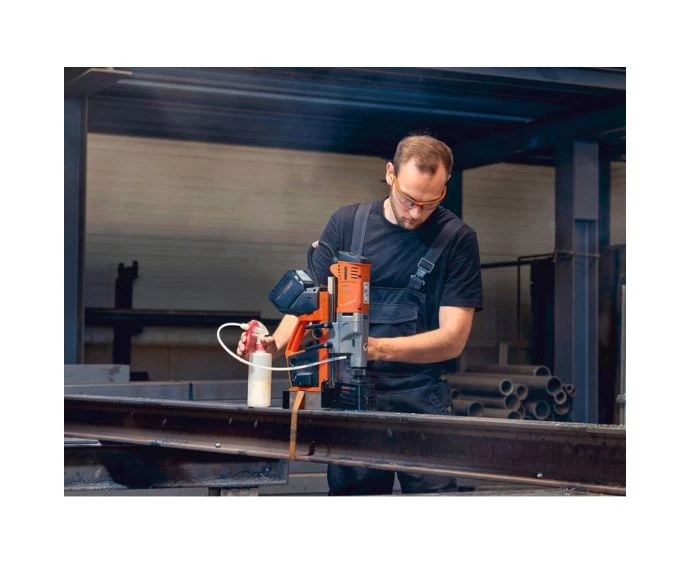

FEIN 71700461000 AKBU 35 PMQW AS 18V Cordless Universal Magnetic Core Drill
FEIN 71700461000 AKBU 35 PMQW AS 18V cordless magnetic core drill (MT2)
The FEIN 71700461000 cordless universal magnetic core drill is built for mobile site drilling where fast, accurate positioning and confident holding power matter. Designed around a permanent magnet base and an MT2 tool mounting, it supports a wide range of drilling and hole-finishing tasks without needing mains power.
With forward/reverse operation, electronic speed setting and a long stroke range, the AKBU 35 PMQW AS is well suited to structural steelwork and fabrication work where core drilling, twist drilling and tapping are required from one compact machine.
Key Features
- Cordless 18V performance: Battery power supports mobile working on site without reliance on a nearby mains supply.
- Permanent magnet base: Provides strong holding power for stable drilling on suitable ferrous materials.
- Forward/reverse running: Helps with controlled tapping and easier tool release.
- Electronic speed setting: Allows the speed to be matched to the cutter size and material for controlled cutting.
- MT2 tool mounting: Supports MT2 tooling for a secure, accurate fit.
- 3/4" Weldon core drill holder: Common magnetic drill cutter interface for positive drive and reliable retention.
- Long stroke capability: Designed to cover a wide working range for alignment and set-up flexibility.
- Brushless motor: Built for durable, efficient operation with reduced maintenance compared with brushed designs.
Specifications at a glance
Comes with
- 1 x Magnetic Core Drill
Technical specification table
| Brand | Fein |
|---|---|
| SKU / Model | 71700461000 |
| Product type | Cordless universal magnetic core drill |
| Power source | Battery |
| Voltage | 18 V |
| Motor | Brushless |
| Direction | Forward / reverse |
| Tool mounting | MT2 |
| Core drill holder | 3/4" Weldon |
| Full load speed | 130 - 520 rpm |
| Magnetic holding power | 9000 N |
| Magnetic foot dimensions | 195 x 70 mm |
| HSS core drill max Ø | 35 mm |
| Carbide core drill bit max Ø | 35 mm |
| Core drill drilling depth max | 50 (75)* mm |
| Twist drill max Ø | 18 mm |
| Reaming max Ø | 18 mm |
| Tapping capacity | M 14 |
| Stroke | 135 mm |
| Total stroke range | 260 mm |
| GTIN / EAN | 4014586898292 |
| Type of kit | Bare Unit |
- Extremely wear-resistant and durable tool concept thanks to brushless motor as well as high material quality and workmanship. Designed for up to 60,000 holes during a 300 h usage period.
- Small and light tool with increased work progress of up to 25%, offering unique productivity and battery life compared with the competition. Using 18 V 12 Ah AMPShare ProCORE batteries, up to 48 holes can be drilled per battery charge (carbide core drill bit, diameter 18 mm, S235 12 mm).
- Weighing 12.2 kg, it’s the lightest cordless universal core drill in the world. Maximum flexibility for all mobile drilling work, such as core drilling, twist drilling, tapping, countersinking and reaming thanks to forward/reverse running, electronic speed setting and a 260 mm stroke range.
- Intuitive operating concept avoids mix-ups and can be clearly seen by the user.
- Convenient magnetic holding force display.
- Tilt sensor stops the drill motor when the tool slips or tilts.
- MT2 tool mounting.
- Secure positioning thanks to extra narrow permanent magnet with magnetic bias for convenient and simple alignment.
- Speed saving "memory function".
- Compatible with Bosch Professional 18 V batteries (available since 2008) and AMPShare batteries.
- COOLPACK 2.0 technology delivers a 135% longer battery life and therefore makes longer operating times possible.
- State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries.
- ProCORE Li-Ion battery with high-power cells, charge status indicator and “Electronic Cell Protection” (ECP). ECP protects against overload, overheating and total discharge.
- * Also available with accessories.
- ** Outstanding performance with AMPShare ProCore 18 V 8.0 Ah / 12.0 Ah
FEIN shape the future – and have been doing so for more than 150 years. Renowned as the first to design and manufacture the first cordless power tool in 1895, FEIN are specialists in the field of power tools and are the perfect workmate for working trades professionals: especially for the metal worker. With a user-centred focus as well as a result-oriented state of mind, FEIN produce first-class products that have the correct application solution, whether drilling, screwing, core drilling, grinding, cutting or sawing.
