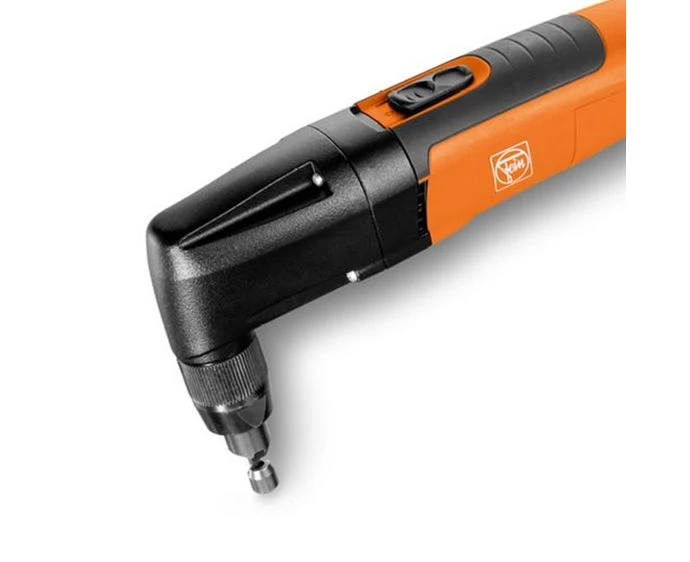

FEIN 72324160241 BLK 1.3 TE Nibbler - 110V
FEIN 72324160241 BLK 1.3 TE Nibbler, 110V corded sheet metal cutter
FEIN 72324160241 BLK 1.3 TE nibbler is a compact 110V corded metalworking tool designed for fast, controlled cutting in trapezoid sheet metal and other sheet materials. With a high cutting speed and a slim drive head, it helps fabricators and site installers work efficiently where access is tight.
Built around the BLK 1.3 TE platform, this nibbler provides adjustable cutting direction for improved handling around profiles and curves, while the QuickIN clamping system supports quick tool changes to keep downtime low.
Key Features
- Tool-free adjustable cutting head: Cutting direction can be set in 45° steps up to 360° to suit profiles, corners and awkward access.
- Fast cutting performance: 2.3 m/min cutting speed helps maintain steady work progress on sheet metal.
- QuickIN clamping system: Designed for quick, straightforward changing of the punch and die.
- Slim drive head ergonomics: Extremely thin drive head with a handle up to 20% slimmer for improved control in confined spaces.
- Long-life consumables: Low operating costs supported by long punch and die service life, with a rotating punch for extended durability.
- Chip protection mesh: Mesh on vent slots helps reduce chip ingress during cutting.
- Overlap capability: Brief overlapping area up to 2.6 mm for practical transitions when cutting.
- 5 m cable: Supplied with a 5 metre cable with plug for workshop and site use.
Specifications at a glance
Suitable applications
- Cutting and trimming trapezoid sheet metals used in cladding and profiling work.
- Sheet metal fabrication tasks where a compact head and adjustable cutting direction improve access and control.
- Curved and shaped cuts with tight radii (down to 25 mm inside / 30 mm outside).
Comes with
- 1 x Nibbler
Technical specification table
| Brand | FEIN |
|---|---|
| Model / Part No. | 72324160241 |
| Product type | Nibbler |
| Supply voltage | 110 V |
| Input wattage | 350 W |
| Output | 210 W |
| Strokes | 1,000 – 1,800 rpm |
| Cutting speed | 2.3 m/min |
| Cutting width | 4 mm |
| Steel capacity (400 N/mm²) | 1.3 mm |
| Steel capacity (600 N/mm²) | 0.8 mm |
| Steel capacity (800 N/mm²) | 0.6 mm |
| Non-ferrous capacity (250 N/mm²) | 2 mm |
| Smallest curve radius (inside / outside) | 25 / 30 mm |
| Immersion Ø with die | 19 mm |
| Cable with plug | 5 m |
| Sound pressure level (Lpa) | 82 dB / 3 dB |
| Sound power level (LwA) | 93 dB(A) |
| Sound peak value (LpCpeak) | 93 db / 3db |
| Vibration value 1 αhv 3-way | 9.5 m/s² |
| GTIN / EAN | 4014586870113 |
- Cutting direction setting can be changed in 45° steps up to 360° using tool-free pivoting cutting head.
- 2.3 m/min cutting speed for excellent work progress.
- Optimum ergonomics with a handle up to 20% slimmer because of its extremely thin drive head.
- Chip protection mesh on vent slots.
- Low operating costs due to long tool life of punch and die.
- Brief overlapping area up to 2.6 mm.
- Rotating punch for a service life which is now up to 30 % longer.
- QuickIN clamping system.
- Stainless steel up to 0.6 mm.
- Motor with outstanding performance and stability.
- 5 metre cable.
FEIN shape the future – and have been doing so for more than 150 years. Renowned as the first to design and manufacture the first cordless power tool in 1895, FEIN are specialists in the field of power tools and are the perfect workmate for working trades professionals: especially for the metal worker. With a user-centred focus as well as a result-oriented state of mind, FEIN produce first-class products that have the correct application solution, whether drilling, screwing, core drilling, grinding, cutting or sawing.
