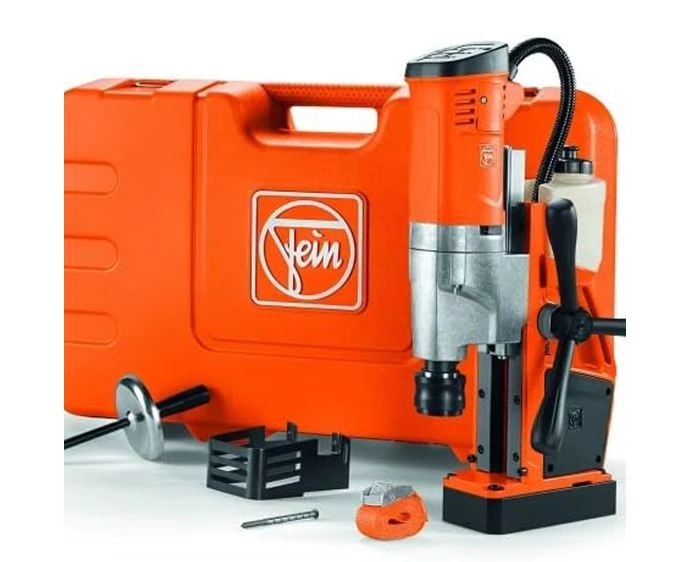

Fein 72705464000 KBU 35 QW Corded Magnetic Core Drill With Fabricator M12 Tapping Set in Case - 240V
Fein 72705464000 KBU 35 QW corded magnetic core drill kit (240V) with M12 tapping set & case
The Fein 72705464000 magnetic core drill is a corded 240V drilling and tapping solution designed for accurate work on steel and fabrication tasks, using a powerful magnet base to help keep the machine stable during drilling. Suited to metal and machine construction, it supports core drilling, twist drilling, tapping and countersinking with a compact, weight-optimised design.
Built around a 1,100W motor with electronic speed control and clockwise/anti-clockwise operation, the 72705464000 offers controlled performance across a range of holemaking jobs where repeatable results and efficient working matter.
Key Features
- Magnetic base holding power: 10,000N magnet helps provide secure positioning on suitable ferrous surfaces for more stable drilling.
- 1,100W motor with tacho electronics: Designed to maintain speed stability under load for consistent cutting performance.
- Variable speed control: Adjustable full-load speed from 130–520rpm to suit different materials and cutter sizes.
- Forward & reverse operation: Clockwise/anti-clockwise rotation supports drilling tasks and tapping applications.
- Multi-application capability: Suitable for core drilling, twist drilling, tapping, countersinking and reaming with one machine.
- 3/4" Weldon cutter mounting: Core drill holder designed for secure fitting of compatible core cutters.
- Robust cable protection design: Swivel-mounted motor cable protection hose helps reduce wear in tough trade use.
Specifications at a glance
Suitable applications
- Core drilling and twist drilling in steelwork where stable, repeatable holemaking is required.
- Tapping tasks (including M12) for through holes and blind holes in fabrication and machine-building work.
- Countersinking and reaming operations where controlled speed and forward/reverse are beneficial.
Comes with
- Magnetic core drill
- Case
- Centring pin (100 mm)
- Size 2 tapping quick-change chuck
- Fabricator M12 tapping set (additional items not fully specified)
Technical specification table
| Brand | Fein |
|---|---|
| Model / Part No. | 72705464000 |
| Product type | Magnetic core drill (corded) |
| Voltage | 240 V |
| Power input | 1,100 W |
| Speed (full load) | 130–520 rpm |
| Core drill holder | 3/4" Weldon |
| Max core drill Ø (HSS) | 35 mm |
| Max core drill Ø (carbide) | 35 mm |
| Max drilling depth (core drilling) | 50 mm |
| Max twist drill Ø | 16 mm |
| Countersinking max Ø | 31 mm |
| Tapping | M 14 |
| Stroke | 135 mm |
| Cable length | 4 m |
| Magnetic holding power | 10,000 N |
| Sound pressure level (LpA) | 86.7 dB |
| Sound power level (LwA) | 97.7 dB |
| Sound peak value (LpCpeak) | 101.2 dB |
| GTIN / EAN | 4014586897325 |
- Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
- Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1 100 W high-power motor with tacho electronics for high speed stability for reliable and economical working.
- With clockwise/anti-clockwise operation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
- Tapping quick change chuck: Can be used with all core drills with reverse running and make your tapping even more precise and more efficient.
- Tapping inserts and tool tapping drills: All from one source, in one set for M8, M10, M12 tapped bores in through holes and blind holes.
- L-BOXX system: Keep things stowed clearly, tidily and safely. Thanks to the tray for small parts, there is room for all accessories and the L-BOXXs can also be joined together and stacked with ease.
Contents:
- 1 x Centring pin 100 mm
- 1 x Size 2 tapping quick-change chuck
- 1 x HSS twist drills, 35 mm cutting depth (1 each of diameter 6.8 / 8.5 / 10.2 mm)
- 1 x Coolant tank
- 1 x Contact guard
- 1 x Tapping collet with safety clutch (1 each of M8 / M10 [DIN 371], M12 [DIN 374/376])
- 1 x HSS 90° countersink bit, diameter 16.5 m
- 1 x Lashing strap
- 1 x Plastic carrying case
- 1 x HSS machine taps for through holes, 1 each of M8 / M10 [DIN 371B], M12 [DIN 376B]
- 1 x Cutting paste
- 1 x Swarf hook
- 2 x 100 mm centring pin
- 1 x HSS machine taps for blind holes (1 each of M8 / M10 [DIN 371C], M12 [DIN 376C])
- 1 x L-BOXX 136 for accessories
FEIN shape the future – and have been doing so for more than 150 years. Renowned as the first to design and manufacture the first cordless power tool in 1895, FEIN are specialists in the field of power tools and are the perfect workmate for working trades professionals: especially for the metal worker. With a user-centred focus as well as a result-oriented state of mind, FEIN produce first-class products that have the correct application solution, whether drilling, screwing, core drilling, grinding, cutting or sawing.
