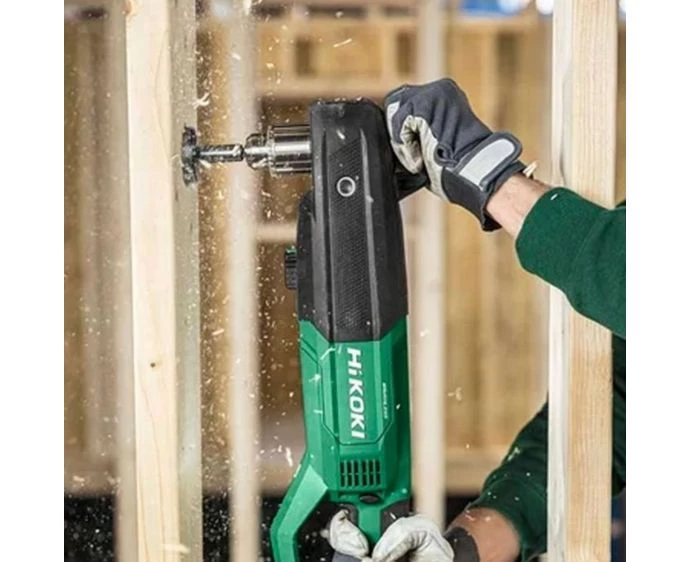

Hikoki Angle Drill Cordless 36V 1/2'' Brushless Keyed Chuck Bare Unit | D36DYAW4Z
HiKOKI D36DYAW4Z 36V cordless angle drill, brushless with 13mm keyed chuck (bare unit)
HiKOKI D36DYAW4Z cordless angle drill is built for high-torque drilling where access is tight, helping tradespeople bore large holes in timber and drill through metal with controlled, consistent performance. The compact right-angle head and keyed chuck make it a strong choice for demanding site work where stability and bit retention matter.
With two-speed control and a brushless motor, the D36DYAW4Z is designed to tackle heavy-duty applications while supporting safer operation through built-in protective features.
Key Features
- Brushless motor: Delivers high-performance drilling with efficient power delivery and reduced maintenance.
- High-capacity drilling capability: Designed for large hole saw work in wood up to 159mm for demanding first-fix tasks.
- Compact head geometry: Low centre height (41.8mm) and head height (172.7mm) help access awkward, confined spaces.
- Keyed 13mm chuck: Provides a firm grip on larger drill bits for secure, stable drilling under load.
- Reactive Force Control (RFC): Helps improve user safety during heavy-duty drilling when kickback is detected.
- Mechanical slip clutch: Supports controlled drilling in tougher conditions (provided on low speed mode).
- Constant speed control: Helps maintain drilling speed under load for smoother progress through dense material.
Specifications at a glance
Suitable applications
- Drilling in narrow spaces where pipes, conduits and services restrict access
- Large-diameter holes in timber using self-feed bits and hole saws
- General drilling in metal up to 13mm with twist bits
Comes with
- 1 x HiKOKI D36DYAW4Z 36V cordless angle drill
Technical specification table
| Product type | Cordless angle drill |
|---|---|
| Model | D36DYAW4Z |
| Power source | Battery |
| Voltage | 36V |
| Battery type | Li-ion |
| Motor type | Brushless |
| No-load speed (low) | 0–400 rpm |
| No-load speed (high) | 0–1,500 rpm |
| Max torque | 170 Nm |
| Chuck type | Keyed chuck |
| Chuck capacity | 2.0–13.0 mm |
| Max drilling capacity (steel) | 13.0 mm |
| Max drilling capacity (wood) | 50.0 mm |
| Max drilling capacity (self-feed bit) | 118 mm |
| Max drilling capacity (hole saw) | 159 mm |
| Reactive Force Control (RFC) | Yes |
| Slip clutch | Yes |
| Head height | 172.7 mm |
| Centre height | 41.8 mm |
| Tool length | 646 mm |
| Tool width | 95 mm |
| Tool height | 198 mm |
| GTIN / EAN | 4966376411184 |
Hikoki, formerly known as Hitachi, have specialised in power tools and equipment for the professional tradesperson since 1948, with their story starting as a producer of tools in the mining trade. Now acting globally, they’ve remained rooted in Japanese tradition, changing their name to the English word ‘high’ and Japanese ‘koki’ meaning ‘industrial machines’ in 2018, better reflecting what their tools represent. Today, Hikoki’s motive is simple: provide an ergonomic design, better balance, optimal control and maximum reliability to give professionals ultimate freedom on the job site. And that’s what they do.
