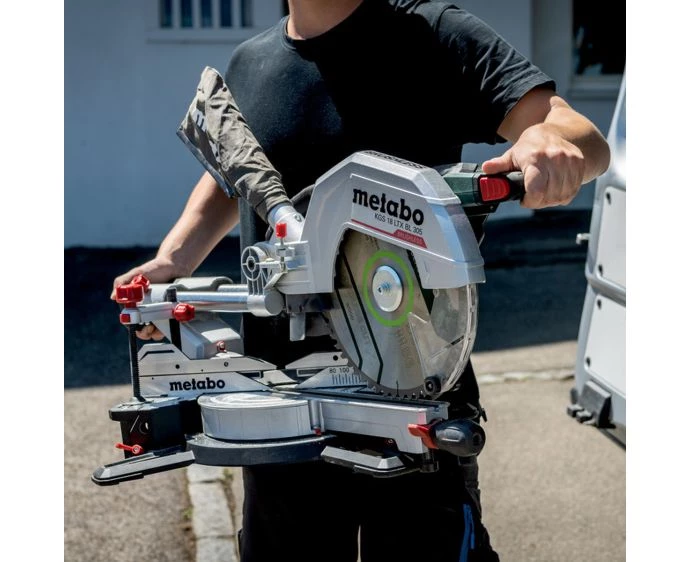

Metabo KGS 18 LTX BL 305 18V Cordless Brushless 305mm Mitre Saw Bare Unit
Metabo KGS 18 LTX BL 305 cordless brushless mitre saw, 305mm (18V) – bare unit
Metabo KGS 18 LTX BL 305 is an 18V cordless brushless mitre saw designed for accurate crosscuts and mitre cuts while keeping set-up mobile and cable-free. With a 305mm blade and sliding action, it is built for demanding on-site work where clean, repeatable cuts and a generous cutting capacity matter.
This 614305850 model combines a robust aluminium construction with practical adjustments for common angles and bevels. The brushless drive is engineered for strong cutting performance and efficient runtime on compatible 18V Li-ion battery packs.
Key Features
- Brushless motor: Provides strong cutting performance with reduced maintenance compared with brushed motor designs.
- 305mm blade capacity: Suits larger crosscuts and mitres for joinery, framing and trim work.
- Sliding function: Supports wider workpieces while maintaining control and accuracy.
- Precision Cut Line (PCL): LED creates a shadow cutting line for accurate alignment without re-adjustment.
- Turntable with angle stop points: Quick, repeatable setting of common mitre angles.
- Dual-side bevel up to 47°: Added flexibility for compound cuts and finishing tasks.
- Integrated dust scoop: Helps support cleaner working when connected to dust extraction.
- Soft start and overload protection: Designed to support smooth start-up and protect the motor and drive system.
Specifications at a glance
Suitable applications
- Crosscutting and mitre cutting timber for second-fix carpentry, trim and general site work.
- Wider workpieces where a sliding mitre saw improves cutting reach and versatility.
- Repeatable angle work using common mitre stop points and dual-side bevel adjustment.
Comes with
- 1 x Mitre saw
Technical specification table
| Manufacturer | Metabo |
|---|---|
| Part number | 614305850 |
| Product type | Mitre saw |
| Power source | Battery |
| Voltage | 18V |
| Battery type | Li-ion |
| Motor type | Brushless |
| No-load speed | 3700rpm |
| Saw blade diameter | 305mm |
| Cutting capacity at 90° (W x H) | 305 x 110mm |
| Cutting capacity at 45° (W x H) | 215 x 67mm |
| Sound pressure level | 98 dB(A) |
| Sound power level | 107 dB(A) |
| Sound power uncertainty | 3 dB(A) |
| GTIN / EAN | 4061792230439 |
- Powerful Brushless motor for powerful sawing like with a mains-powered tool
- Up to 120 cuts in softwood 100 x 100 mm per battery pack charge (LiHD 10 Ah)
- Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
- Large cutting capacity thanks to sliding function for wide work pieces
- Turntable with fast, precise setting of common angles using stop points
- Saw blade inclination on both sides up to 47° for maximum flexibility
- Robust die-cast aluminium design for the highest demands
- Effective dust extraction via integrated dust scoop
- Soft start and overload protection for long service life of motor and drive
- Extendable table width extensions, also removable to put underneath extremely long workpieces
- Quick-action clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- All scales and operating elements are visible from the working position and can be operated intuitively
- Ergonomic handle areas for carrying with one or two hands
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands
Metabo proves its efficiency in professional use – in the hardest of conditions – worldwide, every day. Where professionals give their best, they have to be able to rely 100% on a partner. Even more: They have to trust that partner. Therefore, ‘when it matters’ is the core thought of Metabo’s new international brand appearance, which shows the use of their tools on construction sites all over the world: authentic, illustrative, and genuine. The appearance supports this with a powerful and brand-specific delivery.
- In stock
- SKU:614305850
