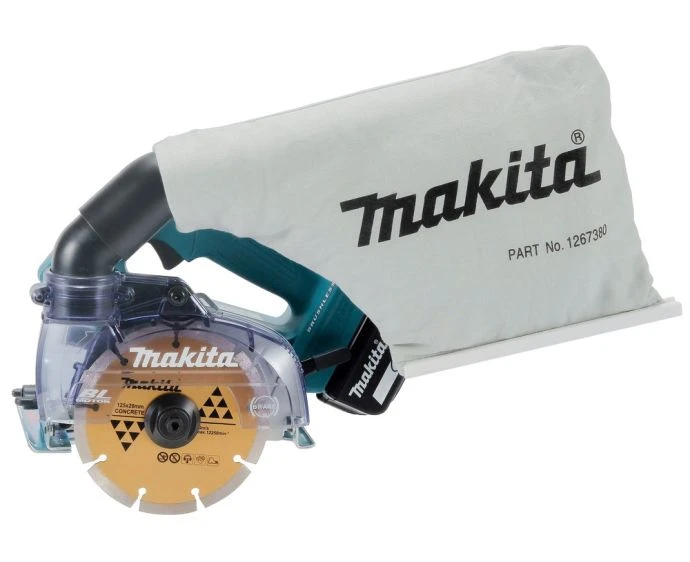

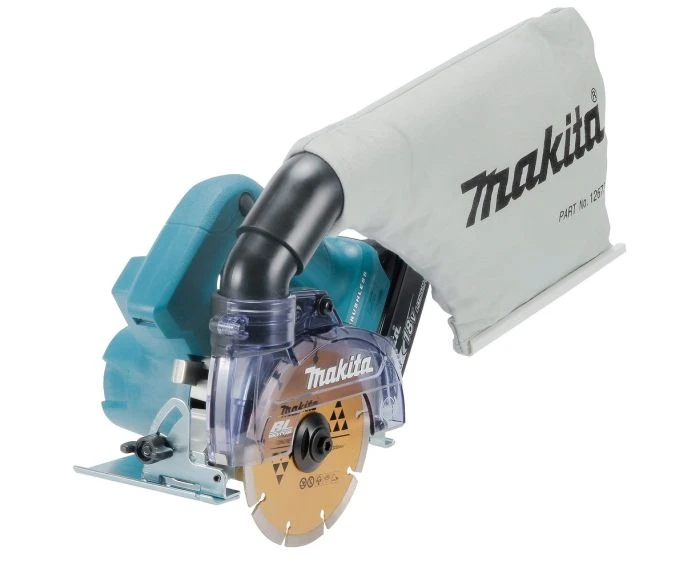

Makita DCC500Z 18V LXT AWS Cordless Brushless 125mm Disc Cutter Bare Unit
Makita DCC500Z cordless 125mm disc cutter (18V LXT, AWS, brushless)
Makita DCC500Z disc cutter is an 18V LXT cordless 125mm tool designed for dust-reduced cutting with a dust cover and dust collecting port to help keep work areas cleaner. Built for trade users, it combines a brushless motor with load-sensing speed control for smooth cutting performance.
The DCC500Z also features Auto-Start Wireless System (AWS) connectivity, allowing pairing with compatible dust extractors via Bluetooth for more streamlined dust management during cutting tasks.
Key Features
- Dust-reduced cutting design: Dust cover and dust collecting port help collect the majority of dust for a safer working environment and less cleanup.
- Brushless motor: High power cutting performance with reduced maintenance compared with brushed designs.
- Automatic Torque Drive Technology (ADT): Adjusts cutting speed according to load conditions for more efficient operation.
- AWS (Auto-Start Wireless System): Connects to compatible vacuum cleaners via Bluetooth for coordinated dust extraction.
- Extreme Protection Technology (XPT): Engineered for improved dust and water resistance for operation in harsh conditions.
- 360° rotatable dust port: Helps position the hose or dust bag connection to suit the cutting direction and working space.
- Battery protection system: Automatically shuts off power when the battery level is low.
Specifications at a glance
Suitable applications
- Cutting tasks where dust control is important, when used with a compatible dust extractor.
- On-site work where cordless mobility is preferred over corded tools.
- Trade cutting applications requiring a 125mm disc cutter with load-sensing speed control.
Comes with
- 1 x Disc Cutter
Technical specification table
| Manufacturer | Makita |
|---|---|
| Model / Part No. | DCC500Z |
| Product type | Disc cutter |
| Power source | Battery |
| Voltage | 18 V |
| Battery platform | Makita LXT |
| Battery type | Li-ion |
| Motor | Brushless |
| Blade diameter | 125 mm |
| Bore diameter | 20 mm |
| No load speed | 8,800 rpm |
| Cutting depth at 45° | 27 mm |
| Sound pressure level | 96 dB(A) |
| Sound power level | 107 dB(A) |
| Noise K factor | 3 dB(A) |
| Vibration K factor | 1.5 m/s² |
| GTIN / Barcode | 0088381736817 |
- Brushless motor provides high power and excellent cutting performance
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Dust proof switch covered with dust cover minimises contamination of motor
- 360° rotatable dust collecting port for vacuum cleaner / dust bag connection
- Wide blade case enables use of curved diamond wheel
- Large top handle design for increased comfort
- Battery protection system automatically shuts off power when the battery level is low
