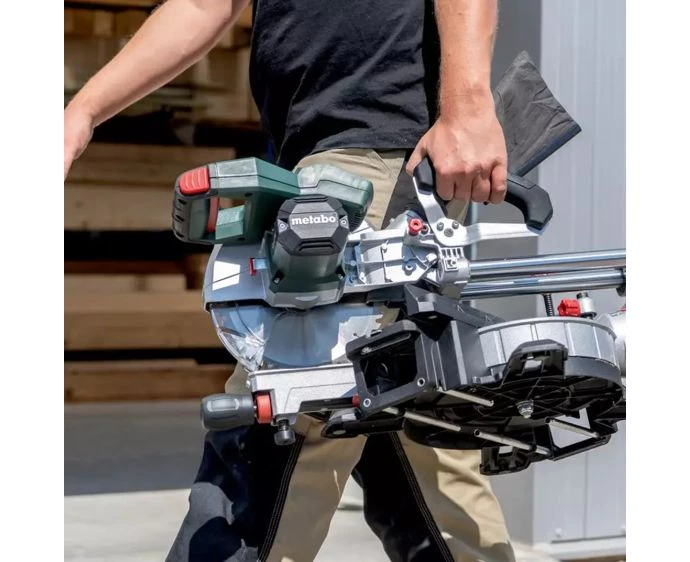

Metabo KGS 18 LTX BL 216 18V Cordless Brushless 216mm Mitre Saw Bare Unit | 614216850
Metabo KGS 18 LTX BL 216 (614216850) 18V Brushless Sliding Mitre Saw, 216mm
The Metabo KGS 18 LTX BL 216 cordless brushless mitre saw is designed for accurate crosscuts and mitre work with the convenience of 18V battery power. Model 614216850 combines a sliding function and a 216mm blade size to help tackle wide workpieces while staying portable for site and workshop use.
Built around a brushless motor and featuring an LED shadow cut line system, the KGS 18 LTX BL 216 is a user-friendly choice for tradespeople who want repeatable cuts, clear line visibility and smooth handling across everyday timber cutting tasks.
Key Features
- Brushless motor: Delivers powerful cutting performance with efficient operation and reduced maintenance.
- Precision Cut Line (LED shadow line): Projects a clear cutting line for accurate alignment without readjustment.
- Sliding function: Supports a large cutting capacity for wider workpieces.
- Mitre turntable with stop points: Enables fast, repeatable setting of commonly used angles.
- Dual-side bevel capability: Saw blade inclination left/right up to 47° / 2° for flexible cutting setups.
- Integrated dust scoop: Supports effective dust extraction at the point of cut.
- Soft start & overload protection: Designed to help protect the motor and drive for long service life.
- CAS battery system: Compatible with 18V battery packs and chargers from CAS brands.
Specifications at a glance
Suitable applications
- Crosscutting and mitre cutting in timber for interior fit-out and joinery tasks
- Repeatable angle cuts using common angle stop points on the turntable
- Wider stock cutting where the sliding function is beneficial
Comes with
- Metabo KGS 18 LTX BL 216 18V Sliding Mitre Saw (614216850)
Technical specification table
| Brand | Metabo |
|---|---|
| Product type | Sliding mitre saw |
| Model | KGS 18 LTX BL 216 |
| Part number | 614216850 |
| Battery voltage | 18V |
| No-load speed | 5,000rpm |
| Saw blade diameter | 216mm |
| Bore diameter | 30mm |
| Support surface | 345 x 730mm |
| Max cutting width (90°/45°) | 305 / 215mm |
| Max cutting depth (90°/45°) | 70 / 40mm |
| Cutting capacity (90°/90°) | 305 x 70mm |
| Cutting capacity (45°/45°) | 215 x 40mm |
| Turntable setting left/right | 50° / 50° |
| Saw blade tilt left/right | 47° / 2° |
| Max cutting speed | 57m/s |
| Sound pressure level | 91 dB(A) |
| Sound power level (LwA) | 101 dB(A) |
| Uncertainty of measurement (K) | 3 dB(A) |
| Weight (without battery pack) | 12.8kg |
| GTIN | 4061792230415 |
- Powerful Brushless motor for powerful sawing like with a mains-powered tool
- Up to 400 cuts in softwood 60 x 60 mm per battery pack charge (LiHD 10 Ah)
- Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
- Large cutting capacity thanks to sliding function for wide work pieces
- Turntable with fast, precise setting of common angles using stop points
- Saw blade inclination on both sides up to 47° for maximum flexibility
- Robust die-cast aluminium design for the highest demands
- Effective dust extraction via integrated dust scoop
- Soft start and overload protection for long service life of motor and drive
- Extendable table width extensions, also removable to put underneath extremely long workpieces
- Quick-action clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- All scales and operating elements are visible from the working position and can be operated intuitively
- Ergonomic handle areas for carrying with one or two hands
- Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands
Metabo proves its efficiency in professional use – in the hardest of conditions – worldwide, every day. Where professionals give their best, they have to be able to rely 100% on a partner. Even more: They have to trust that partner. Therefore, ‘when it matters’ is the core thought of Metabo’s new international brand appearance, which shows the use of their tools on construction sites all over the world: authentic, illustrative, and genuine. The appearance supports this with a powerful and brand-specific delivery.
