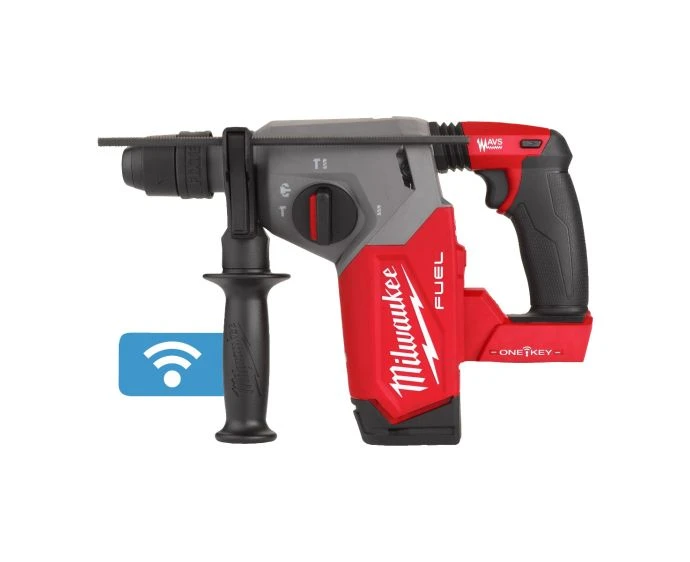

Milwaukee M18ONEFHX-552X 18V M18 Fuel 4-mode 26 mm SDS-Plus Hammer Fixtec Chuck One-Key With 2 x 5.5Ah High Output Batteries, Charger & Case

OverviewSpecificationReviewGallery

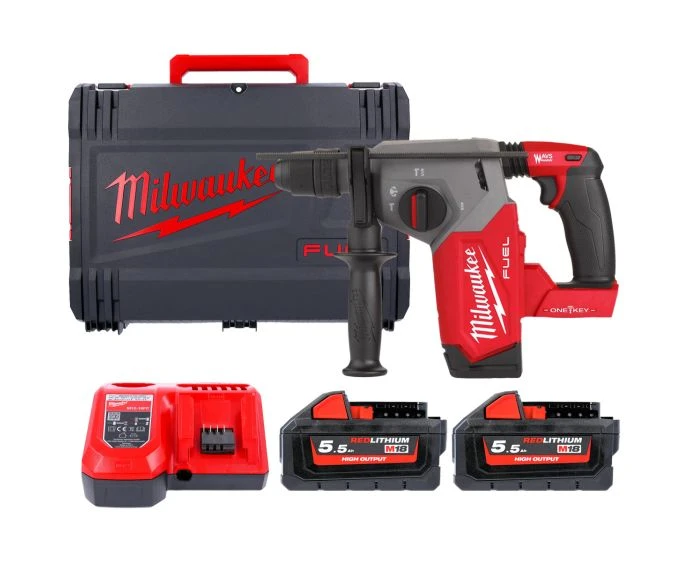

Comes with
Comes with
1 x SDS-Plus Hammer Drill
2 x 5.5Ah Batteries
1 x Charger
1 x Case
Description

Milwaukee M18ONEFHX-552X M18 FUEL 26mm SDS-Plus 4-Mode Rotary Hammer Kit (ONE-KEY, FIXTEC)

Milwaukee M18ONEFHX-552X SDS-Plus rotary hammer kit is designed for fast, controlled drilling and chiselling in demanding site work. With 4-mode operation and a 26mm concrete drilling capacity, it’s a strong choice for tradespeople working across concrete, masonry and general installation tasks.

Built on the Milwaukee M18 platform, the M18ONEFHX-552X combines a brushless motor with ONE-KEY functionality and a FIXTEC chuck system to help improve productivity, simplify tool management and support quick accessory changes on the job.

Note: Kit supplied with 2 x 5.5Ah batteries, charger and case.

Key Features

  • 4-mode operation: Switch between rotary hammer, hammer-only, rotation-only and chisel adjustment for versatile site work.
  • POWERSTATE™ brushless motor: Efficient cordless performance with reduced maintenance compared with brushed designs.
  • 2.5J impact energy: Delivers strong drilling and breaking performance for tough materials.
  • FIXTEC™ chuck system: Supports quick, keyless chuck changes for efficient bit and accessory swaps.
  • ONE-KEY™ enabled: Tool customisation, tracking and security features via app to support tool control and management.
  • REDLINK PLUS™ intelligence: Advanced electronics designed to help protect the tool under heavy load.
  • AUTOSTOP™ functionality: Designed to help protect the user by shutting down in bind-up situations.
  • M18 system compatibility: Works with Milwaukee M18 batteries for flexible site power.

Specifications at a glance

Voltage18V (M18)
Chuck typeSDS-Plus
Impact energy2.5 J
No load speed0–1330 rpm
Blows per minute0–4800 bpm
Max drilling (concrete)26 mm
Batteries included2 x 5.5Ah Li-ion
Weight3.4 kg

Suitable applications

  • Drilling anchor and fixing holes in concrete and masonry (optimised range 6–20mm)
  • Chiselling and chasing tasks using hammer-only mode and chisel adjustment
  • General drilling in wood (up to 28mm) and metal/steel (up to 13mm)
  • Trades requiring tool tracking and configuration via ONE-KEY™

Comes with

  • 1 x SDS-Plus hammer drill
  • 2 x 5.5Ah batteries
  • 1 x charger
  • 1 x case
Technical specification table
BrandMilwaukee
Model / Part No.M18ONEFHX-552X
Power sourceBattery
Voltage18 V
Battery typeLi-ion
Number of batteries2
Battery capacity5.5 Ah
Brushless motorYes
Chuck typeSDS plus
Functions / modes4
No load speed0 - 1330 rpm
Blows per minute0 - 4800 bpm
Impact energy (EPTA)2.5 J
Optimised drilling capacity (concrete)6 - 20 mm
Drill capacity in concrete26 mm
Drill capacity in wood28 mm
Drill capacity in metal / steel13 mm
Vibration (hammer drilling)12.9 m/sec²
Vibration (chiselling)14.2 m/sec²
Vibration (drilling)15.9 m/s²
Vibration K factor1.5 m/sec²
Vibration uncertainty (chiselling)1.5 m/sec²
Vibration uncertainty (drilling)1.5 m/s²
Sound pressure level (Lpa)92.6 dB(A)
Sound power level (LwA)103.6 dB(A)
Sound pressure level uncertainty3 dB(A)
Sound power uncertainty3 dB(A)
Case includedYes
Charger includedYes
Weight3.4 kg
GTIN / Barcode4058546346973
Show
About brand
Milwaukee

Milwaukee has produced innovative heavy duty power tools and accessories for the professional tradesperson for over 85 years. They invest the time to work side-by-side with real users to understand the demands of a constantly changing workplace and how they can best deliver solutions for a safer, more productive jobsite. Through a thorough evaluation of the job at hand, they set out to completely rethink a solution and deliver the game-changing innovation seen across all their product lines.
