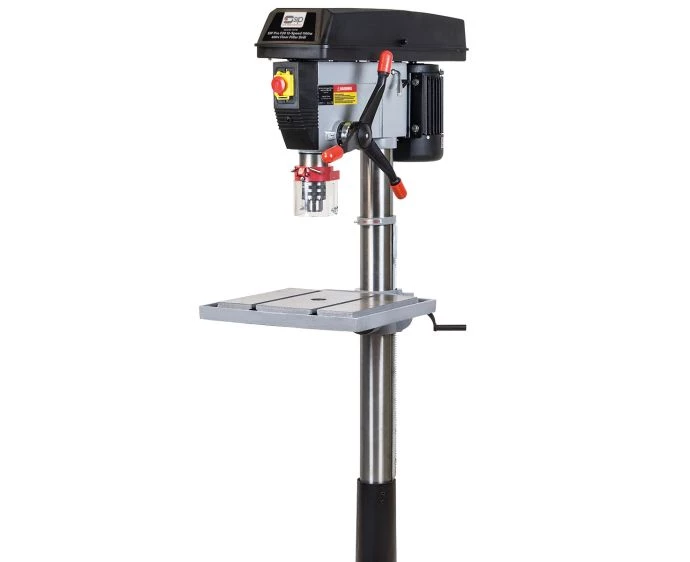

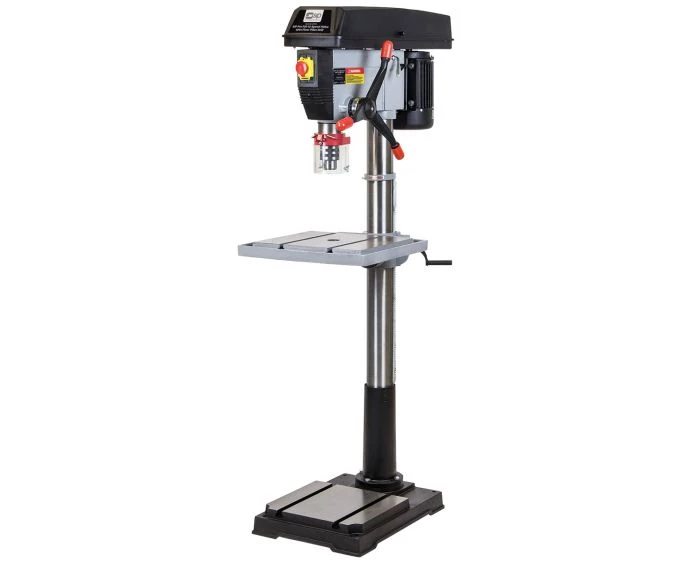

SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill | 01718

The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT4 fitting allows for a larger drilling capacity.

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.

Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.

• Supports a variety of drilling applications: A larger drilling capacity via an MT4 fitting is ideal for materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.
• Multi-speed functionality: Allows precise control of hole sizes across the drilling spectrum.
• High-power brushless induction motor: Delivers powerful performance for consistent high-quality drilling.
• Intuitive features for ease-of-use: Adjustable drilling table and three-lever handle ensures smooth drilling force.
• Fitted with drilling depth stop: Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.
• Safety interlock switch: Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.
• SIP 2-Year Standard Silver Warranty

Specification:

ITEM NO. 01718
Input Voltage: 400v 3-PHASE
Motor Power: 1100w
No. of Speeds: 12 speeds
Speed Range: 150rpm - 2500rpm
Drill Bit Size: 5mm - 20mm
Spindle Taper: MT4
Table Size: 420mm x 470mm
Base Size: 570mm x 425mm
Column Diameter: Ø 92mm
Swing: 506mm
Height: 1720mm
Spindle Travel: 120mm
Collar Diameter: Ø 92mm
Max. Distance: 620mm (chuck to table) / 1095mm (chuck to base)

• 12 spindle speeds powered by a 1100w motor from a 400v 3-phase supply
• Supports a variety of drilling applications
• High-power brushless induction motor
• Fitted with drilling depth stop
• Adjustable drill table for greater accuracy
• Safety interlock switch for safe motor belt adjustment
