Wera 8100 SB VDE 1 Zyklop Reversible 3/8" Insulated Ratchet Set 17 Pieces | 05004970001
Wera 05004970001 8100 SB VDE 1 3/8" insulated Zyklop ratchet socket set (17 pc)
Wera 05004970001 is a 3/8" drive insulated ratchet socket set designed for electrical installation and maintenance tasks where controlled, insulated hand tools are required. The Zyklop reversible ratchet, VDE sockets and extensions are supplied in a compact textile box for organised storage and easy transport.
This 8100 SB VDE 1 set features a fine-tooth Zyklop ratchet for a small return angle, plus insulated sockets and accessories with a secure ball-lock style retention and quick tool changes via the release button.
Key Features
- IEC 60900 tested: Ratchet, sockets and extensions are individually tested for insulated electrical work up to 1,000 V.
- Fine-tooth Zyklop ratchet: 80-tooth mechanism provides a 4.5° return angle for efficient work in confined spaces.
- Reversible with switch lever: Convenient forward/reverse direction change for faster workflow.
- 2-component insulation: Yellow insulation core under a red outer layer supports increased visibility and safety.
- Ball-lock retention & release button: Helps keep sockets securely fitted, with quick changes via a short press.
- Robust textile storage box: Compact, lightweight case that can be positioned upright for clear workshop organisation.
- Wera 2go compatible: Textile box includes hook-and-loop strip for attachment within the Wera 2go system and on workshop storage.
Specifications at a glance

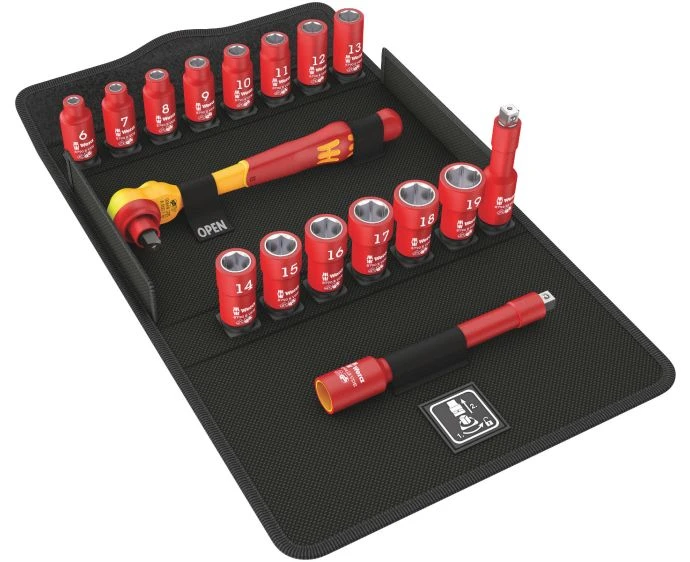

Comes with
- 1 x 3/8" Zyklop insulated reversible ratchet (222 mm)
- 2 x 3/8" insulated extensions (91 mm and 166 mm)
- 14 x 3/8" insulated sockets (46 mm length): 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 mm

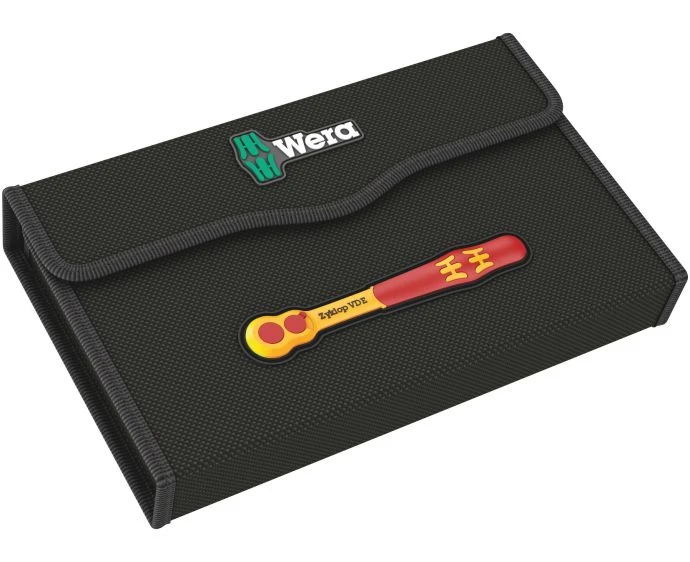

- Textile box
Technical specification table
| Manufacturer | Wera |
|---|---|
| Part number | 05004970001 |
| GTIN / Barcode | 4013288190970 |
| Product type | Insulated socket & ratchet set |
| Drive size | 3/8" square drive |
| Number of pieces | 17 |
| Insulation / standard | IEC 60900 (individually tested) |
| Approved working voltage | Up to 1,000 V |
| Test voltage | 10,000 V |
| Ratchet teeth | 80 |
| Return angle | 4.5° |
| Set/case dimensions | 295 x 178 x 60 mm |
| Weight | 1,740 g |
Wera is one of the world's leading manufacturers of screwdriving tools. The company is based in Wuppertal, Germany and develops and manufactures tools that meet the requirements of professional users. They firmly believe that their tools make life simpler, safer and ‘full of joy’. They’re never content with existing standards: they want to set them. As such, rather than believe that tools have reached their ultimate stages of development, they’re constantly searching for new ideas, building tools like the Zyklop ratchet that turn the familiar into the exceptional.
- In stock
- SKU:05004970001
