Bosch GRL 600 CHV Professional Rotation Laser With 2 x 1.5 V LR6 Batteries (AA), 4 x 1.5 V LR20 Batteries (D) & L-BOXX | 0601061F01

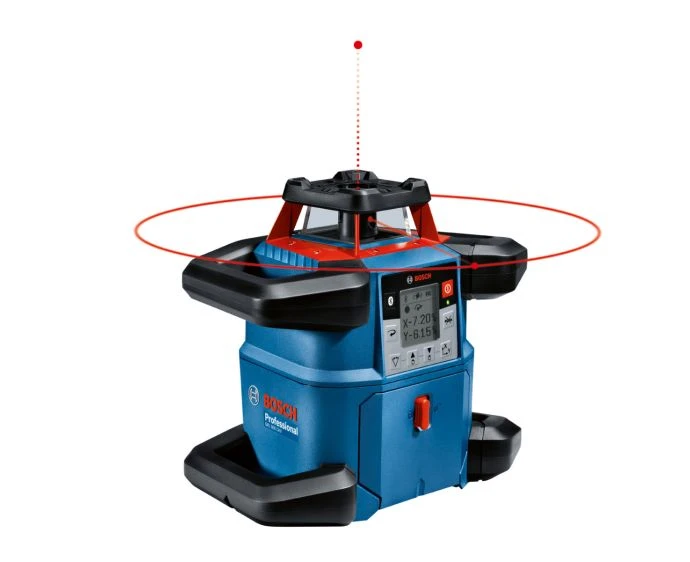

Bosch GRL 600 CHV Professional rotation laser level (0601061F01) with L-BOXX & batteries
Bosch GRL 600 CHV Professional rotation laser level 0601061F01 is designed for heavy-duty levelling and alignment work on demanding jobsites, combining long-range performance with a robust, weather-ready build. It’s a practical choice for site engineers and contractors who need consistent results with minimal downtime.
The GRL 600 CHV supports app-based operation for clear visual control of key functions, including dual slope, while the included receiver helps you pick up the beam over longer distances. Designed to keep working in harsh conditions, it’s rated for dust and water protection and is supplied in an L-BOXX for organised transport.
Key Features
- Rugged, jobsite-ready design: Built with impact protection and high dust/water resistance for tough working environments.
- Long working range: Up to 60m diameter without a receiver, or up to 600m diameter when used with a compatible receiver.
- App-enabled control: Supports intuitive operation via screen and levelling remote app, including dual slope settings.
- Flexible power options: Designed to run on an 18V battery system or alkaline batteries for extended working time.
- Self-levelling capability: Wide self-levelling range helps achieve accurate set-up on uneven ground.
- Variable rotation speeds: Selectable speeds to suit different site tasks and visibility needs.
- Receiver compatibility: Compatible with Bosch LR 60 laser receiver for long-distance detection.
Specifications at a glance
Suitable applications
- Outdoor levelling and alignment where longer distance detection is required (with receiver)
- Harsh site conditions where dust and water resistance are beneficial
- Setting slopes for grading tasks using the dual slope function

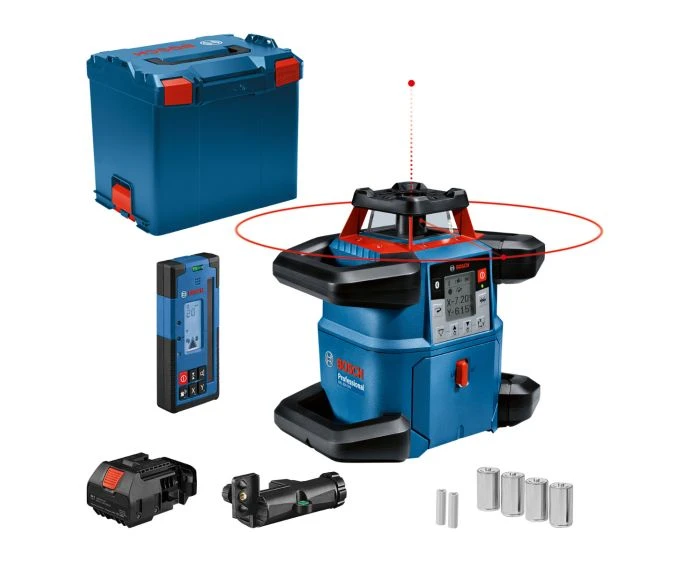

Comes with
- 1 x Rotation laser
- 2 x 1.5V LR6 (AA) batteries
- 4 x 1.5V LR20 (D) batteries
- 1 x L-BOXX
Technical specification table
| Brand | Bosch |
|---|---|
| Model | GRL 600 CHV Professional |
| Part number | 0601061F01 |
| Product type | Rotation laser level |
| Laser projection | 1 x 360° |
| Laser class | 2 |
| Laser diode | 630–650 nm, < 1 mW |
| Working range without receiver | 60 m (diameter) |
| Working range with receiver | 600 m (diameter) |
| Compatible laser receiver | LR 60 |
| Self-levelling range | ± 8% (± 5°) |
| Slope function | Yes |
| Rotation speed | 150 / 300 / 600 min⁻¹ |
| IP rating | IP67 |
| Operating temperature | -10 to 50°C |
| Storage temperature | -20 to 50°C |
| Tripod thread | 2 x 5/8" |
| Length | 446 mm |
| Width | 396 mm |
| Height | 358 mm |
| Weight | 4.6 kg |
| GTIN / EAN | 4059952648392 |
- Get accurate results and save time with the GRL 600 CHV – perfect for heavy-duty jobs
- Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water
- Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time
- Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)
The Power Tools Division of the Bosch Group is the world market leader for power tools and power tool accessories. The core success factors are dedicated associates and a furious pace of innovation. Each year, Bosch launches more than 100 new power tools into the global market, with a vision of mobility that is sustainable, safe, and exciting. Using their expertise in sensor technology, software, and services, as well as their own IoT cloud, Bosch offers connected, cross-domain solutions from a single source.
