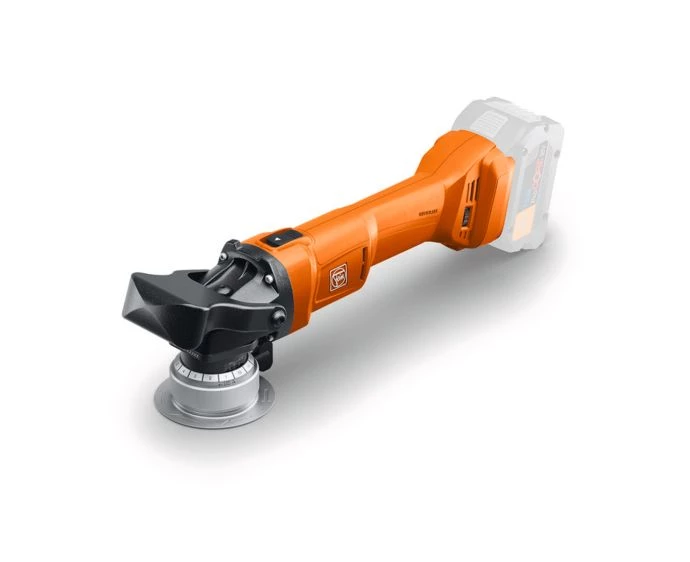

FEIN 71380561000 AKFH 18-5 AS 18V Cordless Bevelling Machine
FEIN 71380561000 AKFH 18-5 AS cordless bevelling machine (18V), 45° chamfer
FEIN 71380561000 AKFH 18-5 AS is an 18V cordless bevelling machine designed for producing a clean 45° chamfer on metalwork and similar materials, helping you prepare edges for subsequent coatings and finishing. Built for flexible use across the workshop or on site, it combines controlled material removal with user protection features for confident handling.
With an infinitely variable no-load speed range, the 71380561000 supports more controlled working across different materials and edge profiles, including inner and outer edges as well as contours.
Key Features
- 45° chamfer capability: Produces consistent edge bevels to support cleaner finishing and coating preparation.
- Infinitely variable speed control: No-load speed adjustment helps match the cutting action to the material and application.
- Designed for multiple edge types: Suitable for flat materials, sheet metal and containers, including inner/outer edges and contours.
- FEIN PowerDrive motor: Built for strong performance and long service life in demanding use.
- User protection electronics: Soft start, restart protection, jam monitoring and electronic overload protection help improve control and tool protection.
- Ergonomic handling: Compact, low-weight design for easier manoeuvring during edge preparation tasks.
Specifications at a glance
Suitable applications
- Edge preparation before coating or finishing work on suitable materials.
- Chamfering flat materials and sheet metal, including container edges.
- Working on inner/outer edges and contours where controlled bevels are required.
Comes with
- 1 x Bevelling Machine
- Case/bag
Technical specification table
| Brand | FEIN |
|---|---|
| Model / Part No. | 71380561000 (AKFH 18-5 AS) |
| Product type | Cordless bevelling machine |
| Power source | Battery |
| Voltage | 18V |
| No-load speed | 2,400 – 7,500rpm |
| Bevel angle | 45° |
| Max. bevel length at 45° | 5mm |
| Max. bevel height at 45° | 3.5mm |
| Radius | 1.2 / 2.5mm |
| Milling head configuration | 3x SX tip |
| Support plate diameter | 98mm |
| Vibration K factor | 3 m/sec² |
| Sound pressure level | 85 dB |
| Sound power level | 96dB(A) |
| Case/bag included | Yes |
| GTIN / EAN | 4014586898247 |
- Unpack the tool and off you go! The set is designed to produce chamfers on flat materials, sheet metals and containers and to produce inner and outer edges as well as contours.
- High sanding capacity requiring little force and infinitely variable speed setting for different materials.
- Ergonomic thanks to low weight and compact design.
- Extensive user protection features include soft start, restart protection, jam monitoring and electronic overload protection.
- FEIN PowerDrive motor delivers good performance and long service life.
- Extensive user protection features include soft start, restart protection, jam monitoring and electronic overload protection.
- Compatible with all 18 V AMPShare ProCORE batteries and chargers for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless devices.
- ProCORE Li-Ion battery with high-power cells, charge status indicator and “Electronic Cell Protection” (ECP). ECP protects against overload, overheating and total discharge.
- COOLPACK 2.0 technology delivers a 135% longer battery life and therefore makes longer operating times possible.
- Ideally equipped for every job. Mobile working with the L-BOXX system.
FEIN shape the future – and have been doing so for more than 150 years. Renowned as the first to design and manufacture the first cordless power tool in 1895, FEIN are specialists in the field of power tools and are the perfect workmate for working trades professionals: especially for the metal worker. With a user-centred focus as well as a result-oriented state of mind, FEIN produce first-class products that have the correct application solution, whether drilling, screwing, core drilling, grinding, cutting or sawing.
